| Tecnología de Impresión |
Thermal Transfer / Direct Thermal |
| Resolución |
203 dpi (8 dot/mm) / 300 dpi (12 dots/mm) |
| Velocidad de Impresión |
5 IPS (127 mm/s) / 4 IPS (102 mm/s)
|
| Anchura de Impresión |
4.25” (108 mm) / 4.16” (105.7 mm) |
| Longitud de Impresión |
Min. 0.16” (4 mm); Max. 68” (1727 mm) |
| Memoria |
8MB Flash (4MB for user storage) / 16MB SDRAM |
| Tipo de Sensor |
Fixed transmissive sensor and Fixed reflective sensor |
| Papel |
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1” (25.4 mm) Min. – 4.64” (118 mm) Max.
Thickness: 0.003” (0.06 mm) Min. – 0.008” (0.20 mm) Max.
Label roll diameter: Max. 5” (127 mm)
Core diameter: 1”, 1.5” (25,4 mm, 38,1 mm) |
| Cinta |
Types: Wax, wax/resin, resin
Length: 360’ (110 m)
Width: 1.18” Min – 4.33” (30 mm – 110 mm) Max
Ribbon roll diameter.: 1.57“ (40 mm)
Core diameter: 0.5” (12.7 mm) |
| Emulaciones |
EZPL, GEPL, GZPL auto switch |
| Software |
Label design software: QLabel-IV, GoLabel (for EZPL only)
Driver & DLL: Windows 2000, XP, Vista, 7,8, Windows Server 2003 & 2008 |
| Fuentes Residentes |
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable |
| Fuentes Descargadas |
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable |
| Códigos de Barras |
1-D Bar codes:
Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock
2-D Bar codes:
PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code |
| Páginas de Código |
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257
Unicode (UTF8, UTF16) |
| Gráficos |
Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces |
Serial port: RS-232 (DB-9)
USB port
Ethernet 10/100Mbps |
| Panel de Control |
One Tri-color LED: Power (Green, Orange and Red)
Function Key: FEED |
| Alimentación |
Auto Switching 100-240VAC, 50-60Hz |
| Entorno |
Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C) |
| Humedad |
Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing. |
| Aprobaciones |
CE(EMC), FCC Class A, CB, CCC |
| Dimensiones |
Length: 10” (254 mm)
Height: 6.7” (170 mm)
Width: 8.8” (224 mm) |
| Peso |
5.5 lbs (2.5Kg) ,excluding consumables |
| Opciones |
USB Device + Parallel interfaces (factory install)

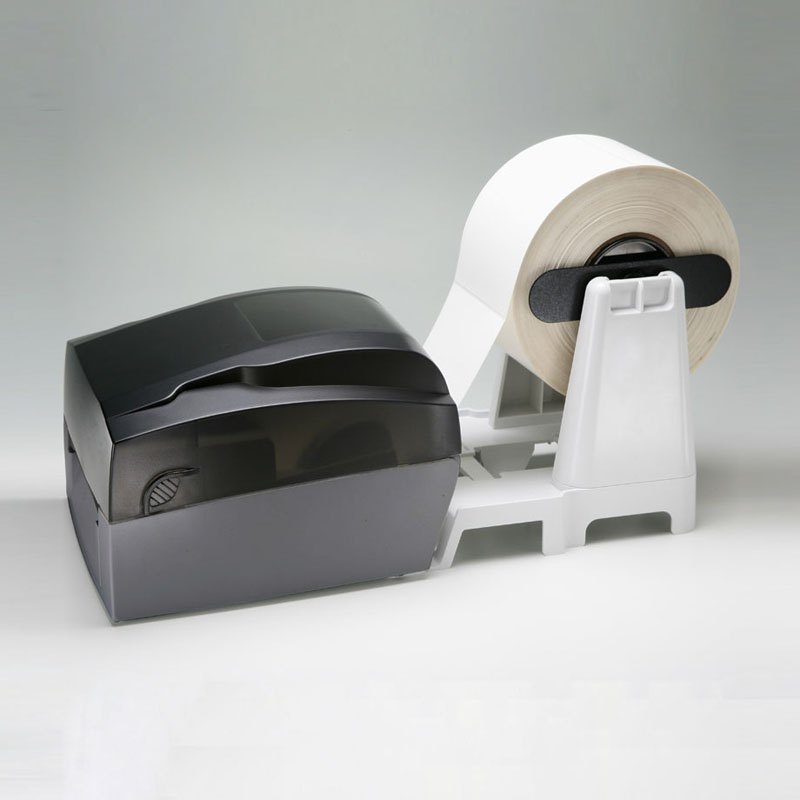

External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder |
